Everything you need to know about T-slot aluminum profiles

Jan. 08, 2024

Aluminum is extensively employed in producing a wide range of products. However, prior to the final product's creation, various stages involve the manufacturing of sub-components. Among these smaller parts, t-slot aluminum extrusions are notably significant.

T-slot aluminum extrusions are favored for constructing substantial parts and products due to their simple assembly and disassembly. The modular design offers versatility, allowing components to be joined in various ways. T-slot aluminum extrusions enable versatile connections, making them a comprehensive choice for construction purposes. This article will tell you everything you need to know about T-slot aluminum profiles.

What Are T-Slot Aluminum Extrusion Profiles?

Everything you need to know about T-slot aluminum profiles

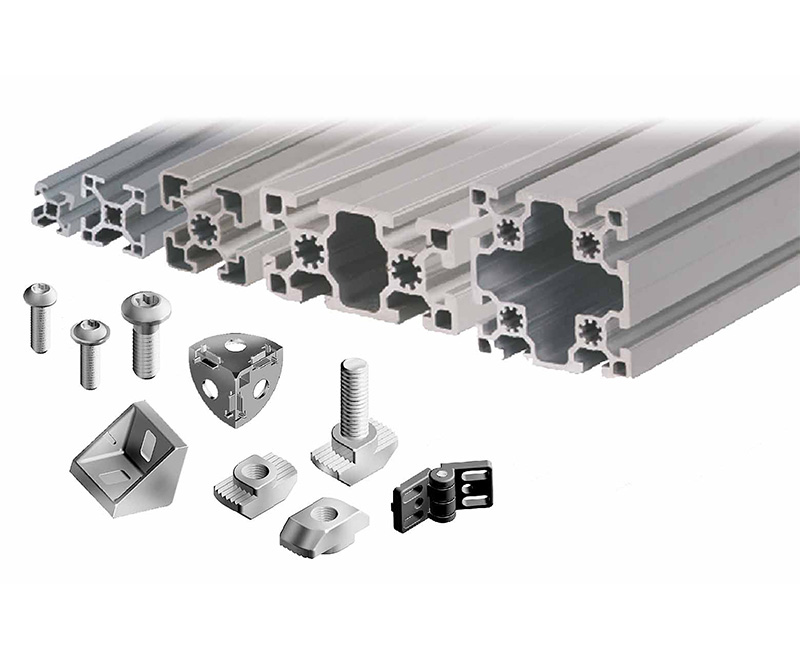

T-Slot aluminum profiles, also known as aluminum extrusions, are modular systems made of aluminum alloys. These profiles feature slots along their edges, allowing easy assembly of structures through connectors and accessories.

After an extrusion process, the aluminum is formed into a profile shape. One such profile is called a T-slot aluminum profile. The modular construction allows them to be easily installed into different accessories. This fit makes T-slot aluminum profiles suitable for a wide range of products. The extruded aluminum T-channel profile is longer and has the required cross-section. Depending on their further use, they are cut to the required size for mounting into accessories.

The slots mentioned provide sufficient strength to encase the T-nuts connected to the profile sections. Typically, the manufacturing process of T-slot extrusions involves anodized 6063-TS aluminum to offer a durable surface treatment. T-slot aluminum extrusions for frames offer various finishes like PVDF painting, woodgrain coatings, polishing, two-step electrolytic anodizing, and powder coating. Besides T-slot aluminum extrusions, V-slots are also popular aluminum profiles. While they may share some similarities, they should be treated separately for complex or customized needs. Let's briefly understand the differences between T-slot and V-slot extrusions.


For detailed explanation of the difference between T-slot and slot aluminum profiles.

Among various types of aluminum extrusion profiles, V-slot and T-slot aluminum profiles are the most common. Even sometimes they are used interchangeably, but they are not exactly the same.

The T-slot profile features a "T" shaped groove on its sides, while the V-slot boasts a beveled edge. This seemingly minor disparity leads to diverse applications for both profiles. V-slot profiles incorporate beveled edges to ensure wheels and bearings within the shape, effectively doubling as a linear rail and significantly reducing motion control part costs. However, essential components like brackets and t-nuts remain similar in both profiles.

Both profiles are compatible with either type of extrusion. Yet, it's not recommended to interchange them, especially for specialized components such as bearings and intricate joints, where the differences become crucial. Choosing between V-slot and T-slot extrusions depends on the specific application and preferences regarding flexibility, ease of assembly, and the type of attachments needed for the structure.

T-Shape Is The Most Common Among All Aluminum Extrusions

T-slot aluminum extrusions come in various sizes, making them versatile for multiple commercial uses. The basic idea of using a T-shaped groove for framing allows for modular attachment of aluminum profiles without welding. This method is safer, more economical, and faster. Special connectors that fit into the T slot of profiles are used to securely join aluminum framing together. These extrusions simplify the creation of structures, whether for climate control enclosures, safety guarding, workstations, laser enclosures, and various other applications.

Benefits Of T-Slot Aluminum Extrusion Frameworks

Alternative building materials like steel can also be used for modular frameworks such as t-slot extrusions, forming intricate cross-section profiles. However, aluminum-based t-slotted extrusions offer several advantages over other materials. Aluminum is notably lightweight, weighing only a third of steel. This makes it an ideal choice when seeking durable and sturdy products without significantly increasing the weight.

Additionally, aluminum boasts excellent corrosion resistance due to its layer of aluminum oxide, preventing reactions between the metal and air. While stainless steel also possesses corrosion resistance, thanks to added chromium, the property of aluminum aids in reducing maintenance costs, minimizing the likelihood of damage during shipping and storage of materials like t-slot aluminum extrusions.

One of the most crucial benefits is aluminum's recyclability. With the global shift towards a greener future, industries are embracing eco-friendly alternatives. Aluminum's recyclability contributes to reducing pollution and increasing the volume of recyclable materials, aligning with sustainable practices. Moreover, aluminum can be forged to match the strength of steel pound for pound, offering durability in uncertain environments, making it a preferred material for various projects, including custom DIY aluminum extrusions.

The durability of aluminum ensures consistent strength throughout the project, meeting custom requirements for both DIY endeavors and commercial ventures. Furthermore, aluminum's strength increases at lower temperatures, enhancing its tensile strength, yield, and impact resistance, further solidifying its advantages in t-slotted extrusions.


Efficiency in the extrusion process often leans towards metals requiring less machining. This not only saves time but also cuts down project costs. Aluminum stands out for its ease of machining compared to iron or steel. This makes it a faster option for commercial projects and an ideal choice for DIY extrusion projects due to its simplicity.


T-slot aluminum extrusions offer an ergonomic advantage, enabling the construction of various machinery products. Their easy maintenance is crucial in creating workbenches and machinery. These extrusions subtly impact daily life, found in ubiquitous items like ladders, automobiles, and workbenches.


The simplicity of t-slot extrusions makes them easily comprehensible without specialized training. Their modular design allows versatile connections with other components, enabling anyone to insert a connector and tighten it with basic equipment. Disassembly is equally straightforward, facilitating reuse for other projects or different alignments without compromising the integrity of the final product.

Benefits Of T-Slotted Aluminum Extrusions

T-slotted aluminum extrusions offer a plethora of advantages beyond what meets the eye. Their simplicity in design serves as a cornerstone, enabling ease of use and versatility in various applications. What sets them apart is their linear adjustability across all three axes - X, Y, and Z - providing unparalleled flexibility in configurations and setups.

The utilization of standard fractional centerlines further enhances their adaptability, allowing for seamless integration with existing systems and components. Their straightforward T-slotted design not only simplifies assembly but also facilitates modifications and adjustments without the need for welding or intricate painting processes, making them a practical choice for various projects.

Moreover, these extrusions come in convenient 240" lengths, catering to different project scales and minimizing wastage. Their inherent high durability and impressive impact strength ensure longevity and reliability in diverse environments and under varying loads.

One notable aspect contributing to their sustainability is their exceptional reusability, with over 90% of the material being recyclable. This eco-conscious characteristic aligns with modern-day sustainability goals, making these extrusions an environmentally friendly option.

Enhancing both functionality and aesthetics, the anodized finish not only provides a sleek appearance but also adds a protective layer, preventing corrosion and wear over time. This surface treatment extends the lifespan of the extrusions, ensuring consistent performance in demanding applications.

In essence, the benefits of T-slotted aluminum extrusions extend far beyond their simple appearance, encompassing adaptability, durability, sustainability, and ease of use, making them an integral component across a myriad of industries and applications.

Applications Of T-Slot Aluminum Extrusions

T-slot aluminum extrusions have a wide range of commercial applications due to their versatility, strength, and ease of assembly. Here are some common commercial uses:

Industrial Machinery: T-slot extrusions are extensively used in creating frames and structures for machinery in manufacturing units. Their modularity allows for easy adjustments and expansions as needed.

Automation Systems: These extrusions form the basis for automation systems, providing the framework for conveyor systems, robotics, and other automated processes.

Workstations and Workbenches: They're used to build sturdy and customizable workstations in laboratories, assembly lines, and workshops.

Trade Show Displays: T-slot extrusions are popular for building modular trade show displays and exhibition booths. Their flexibility enables easy setup and customization for different events.

Retail Fixtures: Shops and retail stores often use these extrusions to create shelves, racks, and display cases that can be easily modified to fit changing product displays.

Furniture Manufacturing: T-slot aluminum is used in making customizable furniture like desks, tables, and shelving units due to its adaptability and sleek appearance.

Solar Panel Frames: The strength and lightweight nature of these extrusions make them ideal for constructing frames for solar panels in commercial and residential settings.

Medical Equipment: They're utilized in building frames for medical equipment, providing a stable base for various devices and machinery used in healthcare facilities.

Gaming and Entertainment: T-slot extrusions are employed in creating structures for arcade machines, gaming tables, and interactive displays in entertainment centers.

Vehicle Modifications: From roof racks to customized interior fittings, T-slot extrusions find applications in modifying commercial vehicles for specific needs like transportation or service purposes.

The adaptability and strength of T-slot aluminum extrusions make them an attractive choice across various industries for constructing custom frameworks and structures tailored to specific commercial needs.
